We manufacture the micro-size aspheric array
optic devices by utilizing the high-precise
optic mold and die and glass molding
technologies and provides diverse array
optic devices that will be applied for
communication modules and laser modules.

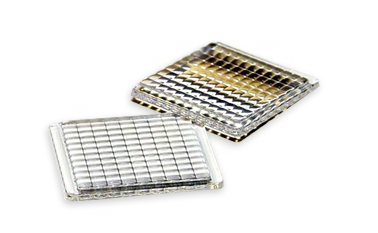

Array Optics

Micro-array lenes

Download >>

Micro-array lenes

We manufacture micro-array lenses with a wide range of
parameters that can meet the demands of our customers. Our optical
engineers have been always supportive in meeting the concepts laid
down by our customers.

Features

Type : Molded lens array
Material : Low Tg glass
Aspheric form error [P-V]: 2.0㎛ Under
AR coating : 98% Over @270~1800nm
Lens pitch : 0.5~5.0mm
Lens size : 20*20 Under
Lens uniformity : 95% Over

Performance and Specification

Lens profiles: Plano-convex, spheres,

aspheres

Array Type : Circular lenses
Pitch Accuracy : ± 1.0 μm
Array clear aperture : 80% Under
Operating Temperature: -20°C ~ 120°C

Advantage

High uniformity of conic, pitch
Optimized lens surface profile
Low lens surface roughness
Excellent pitch control
Ultra compact size and

lightweight
